Toyota Guardian™ Keeps the Human Element Central to new Automated Driving Technology

8 January 2019
  • Toyota Guardian™ autonomous driving technology will amplify human car control not remove it
  • Envelope-control system mimics fighter jet technology, blending the best input from man and machine
  • Re-enactment of test vehicle highway collision using actual video and 3D animation

A vivid re-enactment of a three-car collision on a California highway opened a Toyota Research Institute press conference at CES, the Consumer Electronics Show, in Las Vegas yesterday (7 January). The presentation was used to demonstrate how development of the Toyota Guardian™ automated safety system could help prevent this kind of incident.

No one was hurt in the accident, as TRI CEO Dr Gill Pratt explained: “We know what happened, because we were there, in the thick of it. Our test vehicle was travelling at freeway speed in manual mode, with its autonomy mode disabled as it gathered data. After we downloaded the data from the incident, we asked ourselves if this crash could have been mitigated or avoided altogether by a future Toyota Guardian™ automated safety system. We believe the answer is yes.”

Since starting its work three years ago, TRI has been committed to a two-track development approach to automated driving. Its on-going Toyota Chauffeur programme focuses on fully autonomous operation, where the human is essentially removed from the driving equation, either completely in all environments, or within a restricted operational design domain (ODD). Toyota Guardian™, on the other hand, is being developed to amplify human control of the vehicle, not replace it.

With Toyota Guardian™, the driver is meant to be in control of the car at all times, except in those instances where the system anticipates or identifies a pending incident and employs a corrective response, in co-ordination with driver input.

One of TRI’s most significant breakthroughs of the past year was the creation of blended envelope control, where the Guardian system combines and co-ordinates the skills and strengths of the human and the machine. The system is inspired and informed by the way that modern fighter jets are flown: the pilot uses the control stick but they are not flying the plane directly; instead, their intentions are translated by the low-level flight control system thousands of times a second to keep the aircraft stable and within its safety envelope.

This blended envelope control is much more difficult to create in a car than in a fighter jet, because the control envelope for a car is not only defined by vehicle dynamics, but also by the vehicle’s perception and prediction of everything in its immediate environment. Fundamentally, the idea is that this control envelope is not a discrete on-off switch between human and autonomous control, but a seamless blend of both, working as teammates to extract the best input from both.

Toyota Guardian™ is being developed as an automated safety system that can operate with a human driver, or an autonomous driving system, provided by Toyota or any other company. This is a key capability of the technology.

As Toyota President Akio Toyoda announced at CES last year, Toyota plans to include Toyota Guardian™ as standard equipment on all Toyota e-palette platforms that the company will build for the MaaS – Mobility as a Service – market. By doing so, MaaS fleet buyers can use any autonomous system they choose, with Toyota Guardian™ acting as a belt-and-braces redundancy for any self-driving Chauffeur system.

Pratt stressed the importance of not underestimating the difficulty of developing an autonomous Chauffeur system, both technologically and sociologically. Technically, how do we train a machine in the “social ballet” required to navigate an ever-changing environment, as well as, or better than a human driver? Sociologically, public acceptance of the inevitable incidents that will occur due to fully autonomous Chauffeur systems may take considerable time.

“In the meantime,” said Pratt, “we have a moral obligation to apply automated vehicle technology to save as many lives as possible, as soon as possible.”

This is why TRI’s primary focus in 2018 was to concentrate most of its efforts on making Toyota Guardian™ a smarter machine. For Guardian to learn and become smart, it must be subjected to difficult and demanding driving scenarios, “corner cases” that are simply too dangerous to perform on public roads. On closed courses, Guardian’s intelligence and capabilities can be stretched and challenged. Through continuous refinement, Guardian learns how best to navigate and react to dangerous scenarios as they unfold.

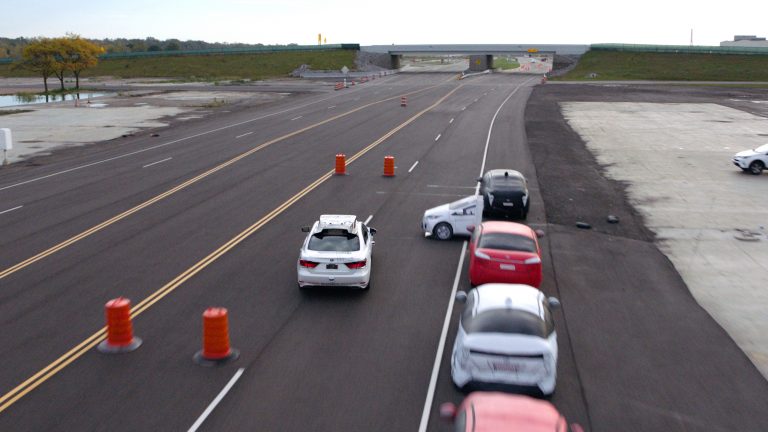

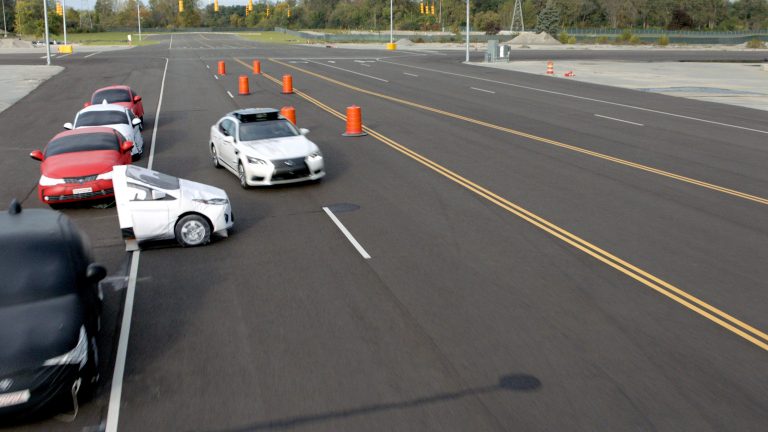

Guardian’s growing capability gives the three-car incident in California shown during the press conference an interesting twist: here was an accidental corner case on a public highway, a dangerous crash that played out right in front of TRI’s sensors and cameras. From the data gathered, TRI developed an accurate simulation that was then translated into a learning tool for the car to figure out its options in a split second. The scenario was re-created on a test track, using real vehicles and a guided, soft-target dummy car. In this instance, the Guardian’s best option was to quickly accelerate safely away from the encroaching vehicles. Here was a case where the Guardian might avoid or mitigate a collision for itself, while potentially doing the same for other nearby vehicles, effectively operating altruistically.

Pratt addressed another key capability that makes the Toyota Guardian™ even more evocative: “Humans have an inherent need for autonomy, which is much stronger than our desire for autonomous cars. It’s about the sheer delight of mobility, from when a child first learns to stand up and make their way across a room without help from mom or dad. And it is the joy of just going for a drive, behind the wheel of a car that can accelerate brake and turn as it is an extension of your body.”

The joy of driving is an inherent and deliberate component of Guardian. Hands on the wheel and eyes on the road is first and foremost about safety, but it is not all about safety. It is also about how a driver feels behind the wheel; safe and secure to enjoy the drive, instead of the ride.

It is also about the democratisation of safety, a philosophy Toyota and Lexus pioneered almost three years ago when they began equipping their cars with automatic emergency braking as standard.

“We think the most important benefit of automated driving is not about the autonomy of cards, but about the autonomy of people,” Pratt concluded.
